Jenkins

Jenkins 개요

• Jenkins is a free and open source automation server
• It helps automate the parts of software development related to building, testing and deploying, facilitating continuous integration and continuous delivery

Jenkins 특징

• 오픈소스인 자동화 서버
• 다양한 플러그인 제공
  • Pipeline
  • Authentication / Authorization
  • Git
  • Docker
• 다양하게 확장

Jenkins 설치 및 실행 with Docker-compose

• https://github.com/Sanses/devops_06_03_jenkins/blob/master/src/jenkins_local/docker-compose.yml

  version: '3.9'
  services:
  	jenkins:
  		image: jenkins/jenkins:latest #2.60.3
  		container_name: jenkins
  		environment:
  			- "TZ=Asia/Seoul"
  		ports:
  			- "8080:8080"
  		volumes:
  			- "./data:/var/jenkins_home"

Jenkins Pipeline of Sample

• pipeline {
  	agent any
  	stages {
  		stage("Build") {
  			steps {
  				echo "Jenkins Pipeline running"
  			}
  		}
  	}
  }

Jenkins Pipeline

Jenkins Pipeline 개요

• Jenkins 2.x or later (older versions back to 1.642.3 may work but are not recommended)
• Required Plugin 'Pipeline plugin'
• Support CD
• Pipeline as code (DSL, Jenkinsfile)

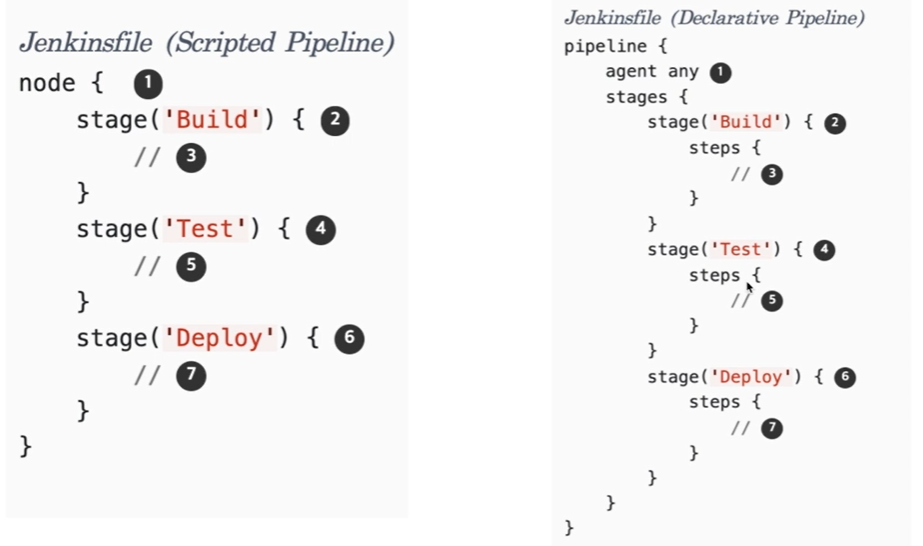

Jenkins Pipeline Script

• Scripted pipeline

  • inject groovy script
  • Java API reference

• Declarative pipeline (recommended)

  • Jenkins DSL
  • Isolate complex logic into Jenkins plugin
•

• Jenkins Pipeline Syntax

  • Section

    • agent
      • pipeline or stage가 실행될 노드 지정
        • node
        • any
        • label
        • node
        • docker
        • dockerfile
        • kubernetes
    • stages
      • 순차적인 작업의 명세인 stage들의 묶음
    • steps
      • stage안에서의 실행되는 단계
    • post
      • 위치에 따라 stages들의 작업이 끝난 후 추가적인 steps 혹은 stage에 steps들의 작업이 끝난 후 추가적인 step
      • Condition
        • always
        • changed
        • fixed
        • regression
        • aborted
        • failure
        • success
        • unstable
        • unsuccessful
        • cleanup

  • Directive

    • parameters
      • key = value
      • pipeline 내부에서 사용할 환경변수
      • credentials()를 통해 Jenkins credential에 접근 가능
    • environments
      • pipeline을 trigger할 때 입력 받아야 할 변수를 정의
      • Type
        • string
        • text
        • booleanParam
        • choice
        • password
    • when
      • stage를 실핼 할 조건 설정
    • ...

Jenkins Pipeline Overview

Jenkins 설치 with Docker

• https://github.com/Sanses/devops_06_03_jenkins/blob/master/src/jenkins_remote_docker/Dockerfile


  Dockerfile

  FROM jenkins/jenkins:lts
  ARG DOCKER_GID=1000
  USER root

  # docker install
  COPY scripts/install_docker.sh /install_docker.sh
  RUN chmod +x /install_docker.sh && \
      /install_docker.sh

  # aws cli install
  COPY scripts/install_aws.sh /install_aws.sh
  RUN chmod +x /install_aws.sh && \
      /install_aws.sh

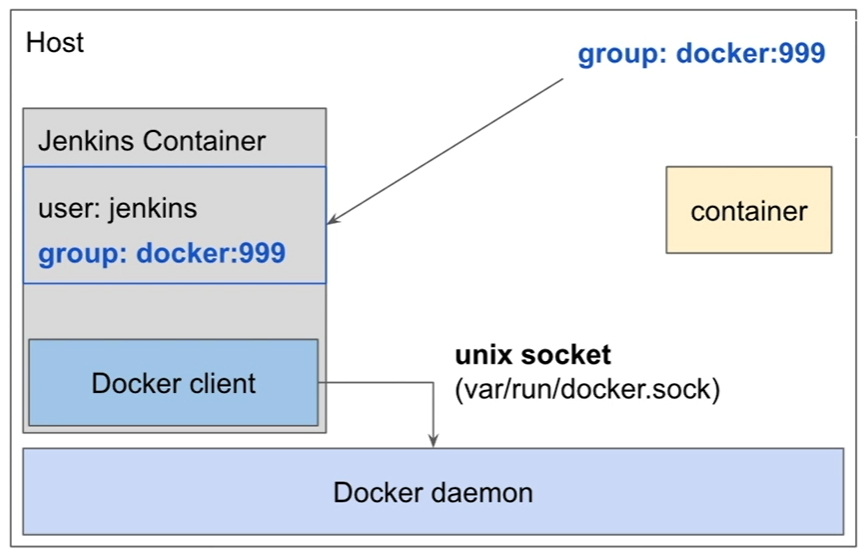

  # set jenkins user to host docker group
  RUN /usr/sbin/groupadd -g ${DOCKER_GID:-1000} -f docker && \
      /usr/sbin/usermod -aG docker jenkins

  USER jenkins

  docker-compose.yml

  version: '3.8'
  services:
    jenkins:
      build:
        context: ""
        args:
          DOCKER_GID: ${DOCKER_GID}
      container_name: jenkins
      environment:
        TZ: "Asia/Seoul"
        JAVA_OPTS: "-Dhudson.model.DownloadService.noSignatureCheck=true"
        DOCKER_GID: ${DOCKER_GID}
      ports:
        - "8080:8080"
      volumes:
        - "./data:/var/jenkins_home"
        - "/var/run/docker.sock:/var/run/docker.sock"
